Key features:

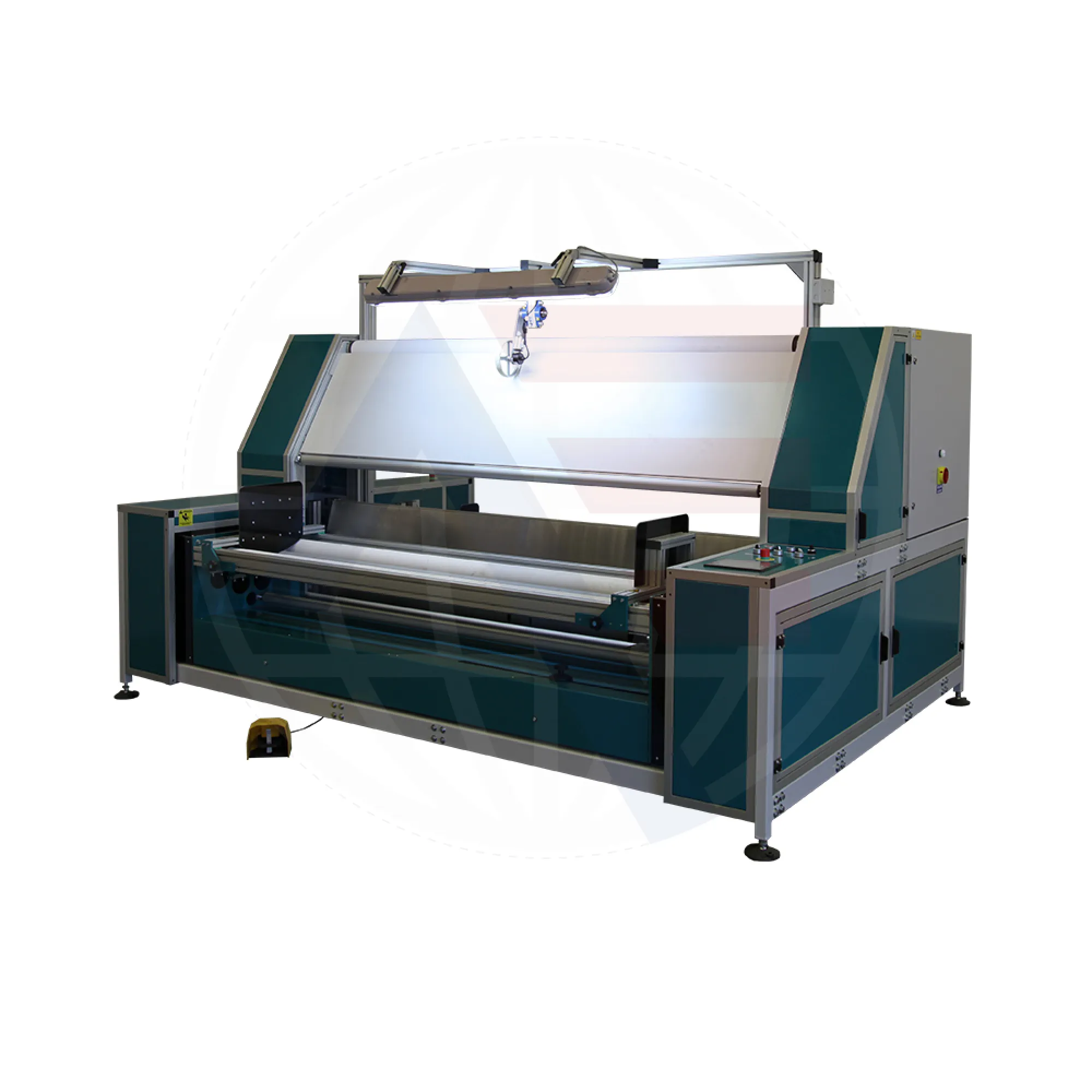

- The machine is designed to rewind and inspect fabric on to a cardboard core.
- The machine is equipped with fabric edge sensor to ensure even rewinding.
- The machine is suitable for elastic and non-elastic materials.
- Top inspection light.
- The machine can be equipped with following options:
- Backlighting screen (PP-5/AE).
- Cutting knife semi-automatic OT-1/A or ULTRASONIC (PP-5/AE).
- Fabric feed is possible by: Expanding airshaft for cardboard core, geared feed rollers or special "V" shape, geared conveyor belt cradle.
- Winding on to the cardboard core can be done on geared receiving rollers or expanding airshaft.
- Cut pieces can fall on special hanger, pile or on a roller conveyor.
- Control panel is equipped with high quality touchscreen.
- Easy to use touchscreen interface available in Polish, English and Russian (other languages on demand).
Specifications:
- Max. roll width: 2000 mm
- Max. roll diameter: 400 mm
- Max. roll weight: 80 kg
- Overall dimensions (LxWxH): 1980 mm x 3125 mm x 1920 mm
- Voltage: 230 V AC
- Power: 1.15 kW
